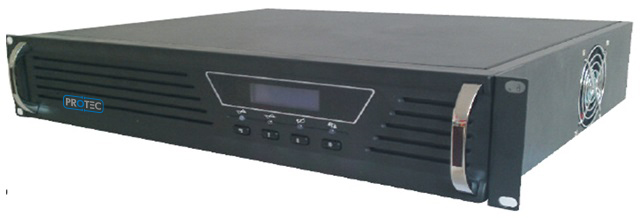

Power Inverter
<< Back to Products
CPU control technology
SPWM technology with pure sine wave
Powerful load capability and high compatibility
Advanced reverse noise technology
Settable to AC model and DC model Fault protection
Interface: RJ45, Dry contacts
Capacity |
500VA - 6000VA |
DC Input |
Input Voltage (VDC) |
12V / 24V / 48V / 110V / 220V |
Reverse Noise Current |
≤ 10% |
AC Bypass |
Bypass Volt (VAC) |
265V - 185V (±10V) |
Input Current (A) |
2.3 - 27.3 |
Transfer Time (ms) |
≤ 5ms |
AC Output |
Rated Capacity (VA) |
500VA - 6000VA |
Output Power (W) |
400W - 4200W |
Voltage and Frequency |
220VAC, 50Hz |
Rated Current (A) |
1.8 - 19.1 |
Voltage Precision (V) |
220 ±1.5% |
Frequency Precision (Hz) |
50 ±0.1% |
Wave Form |
Sine wave |
THDu |
≤ 3% |
Transient Response |
5% |
Power Factor (PF) |
0.8 / 0.7 |
Overload Capability |
120%, 30sec |
Efficiency |
≥ 85% |
Transfer to Bypass |
≤ 5ms |
Environment |
Isolation (IN / OUT) |
1500VAC, 1min |
Noise (1 meter) |
≤ 40dB |
Operation Temperature |
-25°C-+50°C |
Humidity |
0 - 90% (Non-condensing) |
Altitude (m) |
≤ 2000 |
Mechanical |
Standard (W x D x H) (mm) |
482 x 356 x 88 (500VA; 1kVA; 2kVA), 482 x 388 x 88 (3kVA; 4kVA; 5kVA), 482 x 400 x 176 (6kVA) |
Weight (Kg) |
8.5Kg (500VA, 1000VA, 2000VA, 3000VA); 12KG (4000VA); 12.5Kg(5000VA); 17Kg (6000VA) |
